CHUCKS CLASS

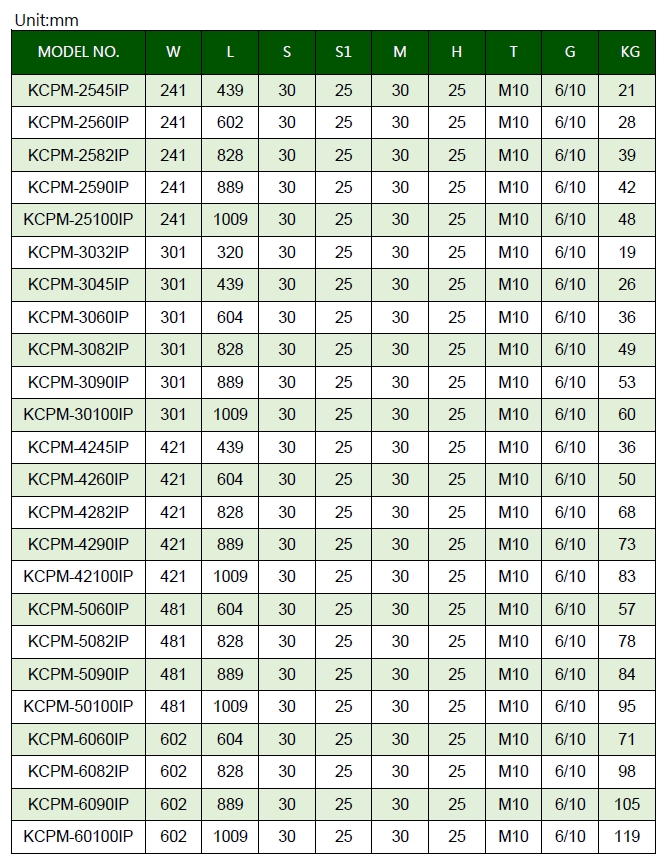

Electro-Permanent Magnetic Chuck KCPM-IP

1. Suitable for quantity of irregular and smaller workpiece. It can be machining multi-workpiece at same time easily.

2.A KCPM chuck can be use several Induction Sub Plate exchangeability for machining different kind of workpiece.

3.Operation:Set up the Induction Sub Plate to the KCPM chucks. first, then machining forms (Around 1-2mm depth) on IP to match the workpiece by the machine directly. Start to clamp workpieces for machining.



（Customization is available）



1. Suitable for quantity of irregular and smaller workpiece. It can be machining multi-workpiece at same time easily.
2. One KCPM chuck  can be use several al Inducion Sub Plate exchangeablity for mad machining differerent kind of workpiece.
3. Operation:Set up the Induction  Plates to the KCPM chucks first, thenmachining forms (Around 1-2mm depth) on IP to match the workpiece by the machine directly. Start to clamp workpieces for machining.




1.INTUCTION BlOCK KCPM-S50T



2.Spring Block KCPM-SP

 　
