CHUCKS CLASS

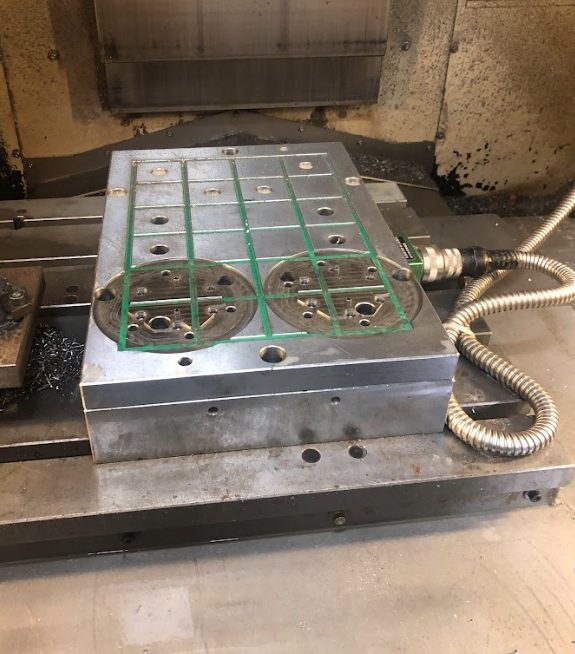

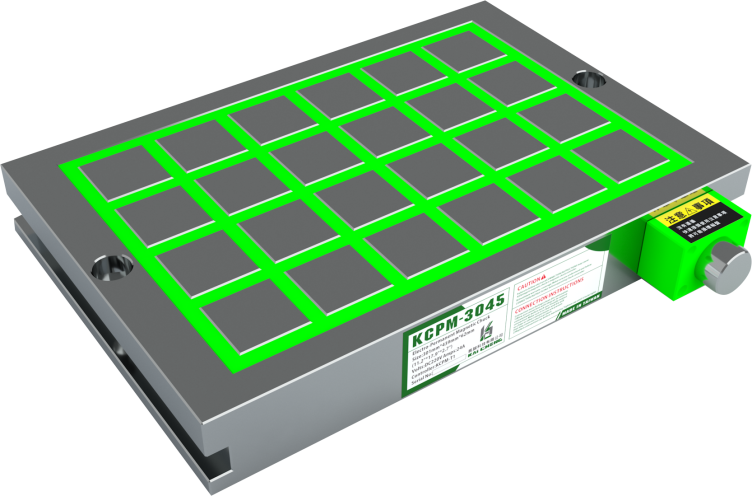

ELECTRO-PERMANENT MAGNETIC CHUCK KCPM-B

1.Pole:(50×50)

2.Powerful magnetic force 1300kgf/110mm²±5%(4 Poles)

1. Powerful magnetic force 1300 kgf/110mm²±5%. (4 Poles)



        Unit:mm

     (Customization is available)

1.Powerful magnetic force 1300.kgf/110mm²±5%. (4 Poles)

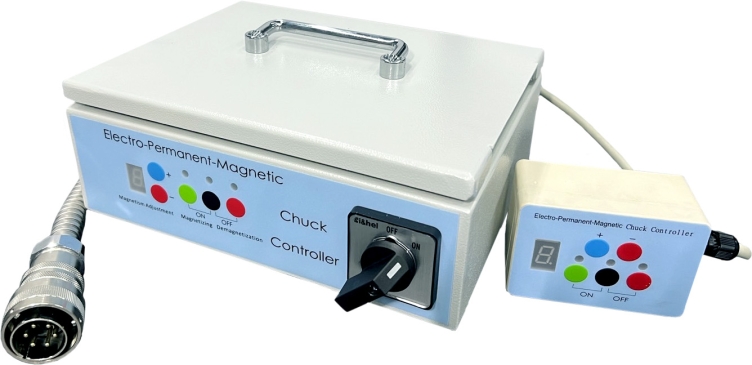

2.Electro permanent magnelic dosign. 1-2seconds for power ON & OFF. No need to keep power supply, without temperature rise which is available for long time use.The accuracy will not be affected by the deformation of the workpiece due to the increase in temperature.

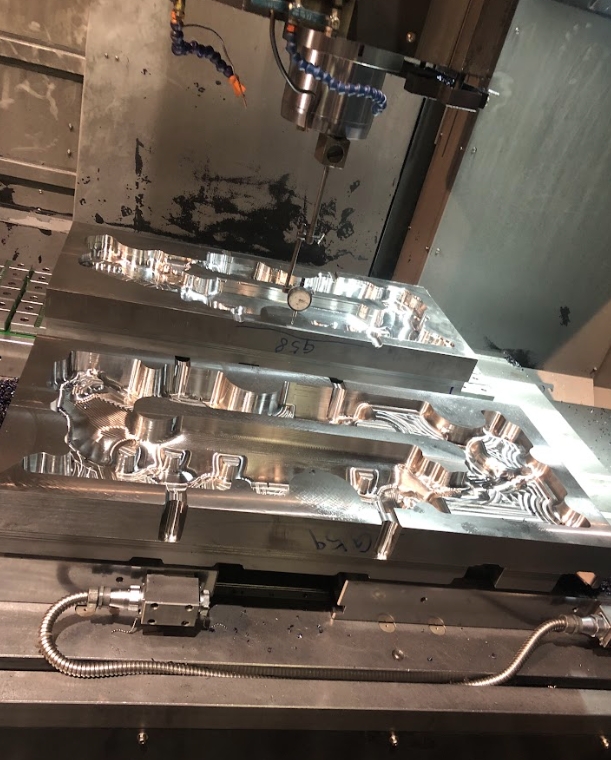

3.With induction soft block. it is avalable to do) 5 face machining, drilling, tapping, slotting, shaping in one time clamping, saving the machining process which reduces the repetitive tolerance due to the complicate process.

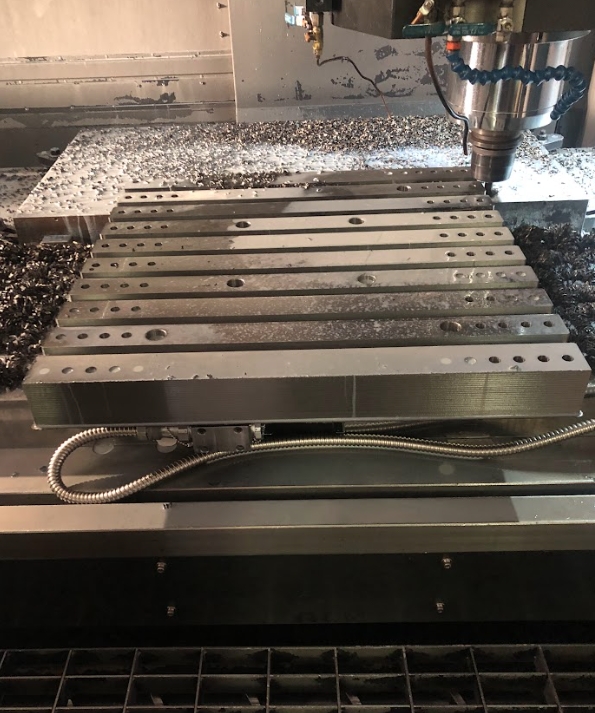

4.Samenthe set up ninever the workpieces the clamping area can cover the entire working area. Improve the processing efficiency by multiple workpieces machining at the same time.











1.INDUCTION BLOCK  KCPM -B SERIES

2.INTUCTION BlOCK KCPM-S50T



3.Spring Block KCPM-SP
