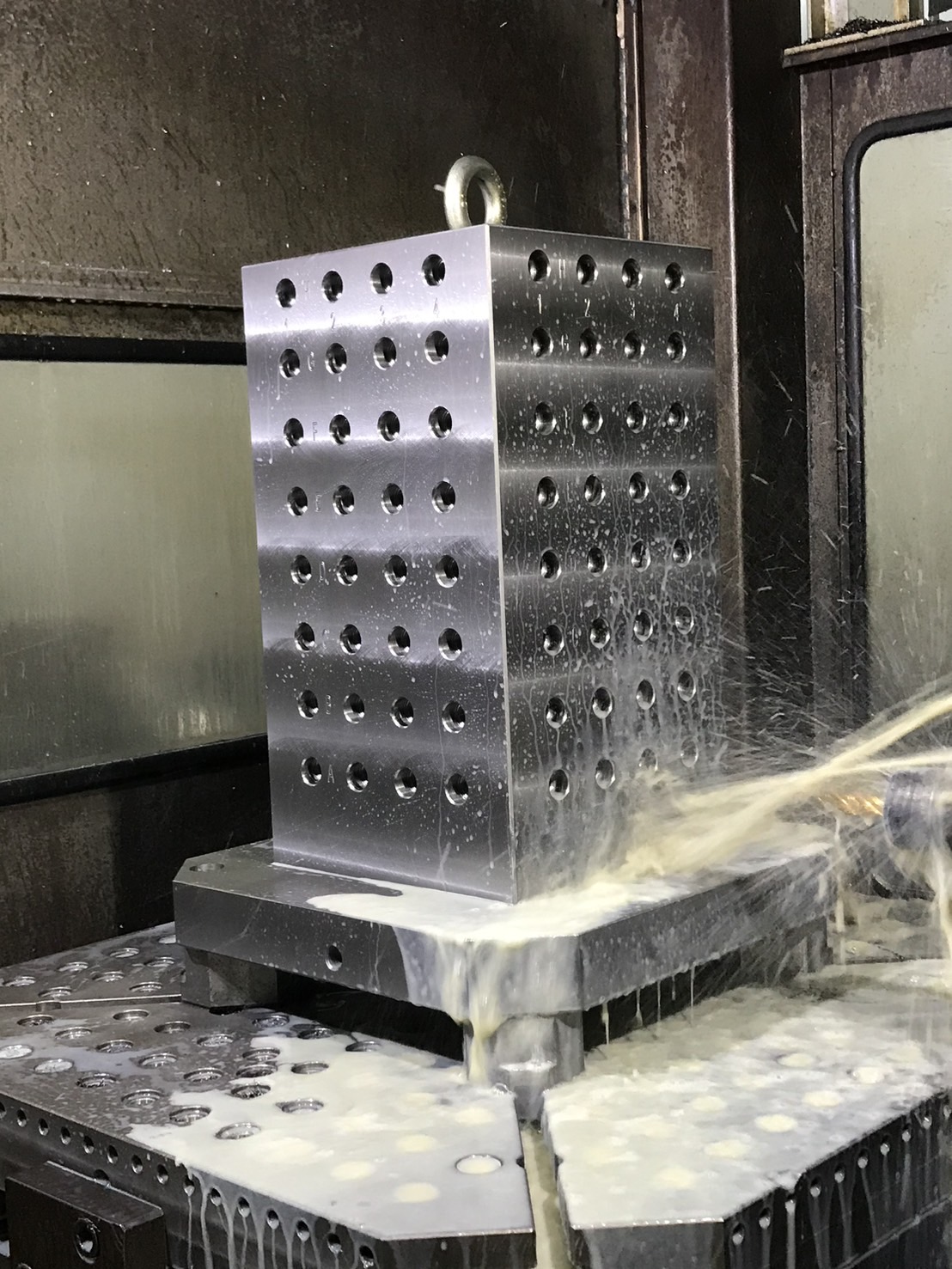

MC SQUARE TOOLING COLUMN SC02

1.Material: FCD55

2.Heat treated: Normalized

3.Application: Horizontal Machining Center

4.Features：Ａlignment bushing＆thread insert at every hole location ,easily adapts to standardized jig components



（Customization is available）

1.Material: FCD55

2.Heat treated: Normalized

3.Application: Horizontal Machining Center

4.Features：Ａlignment bushing＆thread insert at every hole lication ,easily adapts to standardized jig components



1.THREADED INSERT:

2. POSITIONING BUSHING:



3.LOCATING KEY



4.LOCATING KEY
